XPENG MONA M03 2024

2024
miles
Make An Offer Price

Car Overview

  • Body
  • Mileage
  • Fuel Type
  • Year
    2024
  • Transmission
  • Drive Type
  • Condition
    New
  • Engine Size
  • Door
  • Cylinder
  • Color
  • VIN

Description

The XPENG MONA M03 is a smart, pure electric coupe that seamlessly blends sporty aesthetics, intelligent features, and impressive handling for a refined driving experience.

The exterior design emphasizes a sleek and athletic appearance, with a low, wide body stance and large wheels, achieving the golden proportions of a true sports coupe. This design radiates both style and power.

Inside, the XPENG MONA M03 adopts a minimalist yet elegant design, highlighted by a D-shaped steering wheel and a 15.6-inch oversized center control screen. These features contribute to an intuitive and engaging driving experience, offering a sense of modern luxury.

As a smart electric coupe, the MONA M03 excels in its technology offerings. The vehicle comes standard with a 15.6-inch floating touch center control screen and a vehicle gauge chip, delivering a smooth and responsive user interface for seamless operation.

Performance-wise, the XPENG MONA M03 provides a range of configurations to suit different consumer needs, ensuring a dynamic yet comfortable drive across various road conditions.





Parameter configuration

name XPENG MONA M03 2024 515 long life version XPENG MONA M03 2024 620 ultra long life version XPENG MONA M03 2024 580 ultra long life Max version
Basic information
manufacturer XPENG Automobile XPENG Automobile XPENG Automobile
rank A compact car A compact car A compact car
Energy type Pure electric Pure electric Pure electric
Time to market 2024.08 2024.08 2024.08
motor Pure electric 190 horsepower Pure electric 218 horsepower Pure electric 218 horsepower
Pure electric range (km) Ministry of Industry and Information Technology 515 620 580
Electric range (km)CLTC 515 620 580
Charging time (hours) Fast charge 0.43 hours Fast charge 0.43 hours Fast charge 0.43 hours
Fast charge (%) 30% - 80%. 30% - 80%. 30% - 80%.
Maximum power (kW) 140(190Ps) 160(218Ps) 160(218Ps)
Maximum torque (N·m) 225 250 250
gearbox Single-speed transmission for electric vehicles Single-speed transmission for electric vehicles Single-speed transmission for electric vehicles
Length x Width x Height (mm) 4780x1896x1445 4780x1896x1445 4780x1896x1445
Body structure 5 door 5 seat hatchback 5 door 5 seat hatchback 5 door 5 seat hatchback
Maximum speed (km/h) 155 155 155
Official 100 km Acceleration time (s) 7.8 7.4 7.4
100km power consumption (kWh/100km) 11.5 kWh 11.5 kWh 11.5 kWh
Power equivalent fuel consumption (L/100km) 1.34 1.34 1.34
Vehicle warranty period Five years or 120,000 kilometers Five years or 120,000 kilometers Five years or 120,000 kilometers
body
Length (mm) 4780 4780 4780
Width (mm) 1896 1896 1896
Height (mm) 1445 1445 1445
Wheelbase (mm) 2815 2815 2815
Front wheel base (mm) 1628 1628 1628
Rear wheel base (mm) 1628 1628 1628
Body structure hatchback hatchback hatchback
Number of doors (each) 5 5 5
Door opening mode Swing door Swing door Swing door
Number of seats (PCS) 5 5 5
Service weight (kg) 1661 1739 1739
Full load weight (kg) 2036 2114 2114
Luggage compartment Capacity (L) 621-1603. 621-1603. 621-1603.
Minimum turning radius 5.3 m 5.3 m 5.3 m
Wind resistance coefficient (Cd) 0.194 0.194 0.194
motor
Motor description Pure electric 190 horsepower Pure electric 218 horsepower Pure electric 218 horsepower
Motor type Permanent magnet/synchronous Permanent magnet/synchronous Permanent magnet/synchronous
Total motor power (kW) 140 160 160
Total motor horsepower (Ps) 190 218 218
Total motor torque (N·m) 225 250 250
Maximum power of front motor (kW) 140 160 160
Maximum torque of front motor (N·m) 225 250 250
Number of driving motors Single motor Single motor Single motor
Motor layout preposition preposition preposition
Battery/Charging
Battery type Lithium iron phosphate battery Lithium iron phosphate battery Lithium iron phosphate battery
Battery characteristic technology Blade battery Blade battery Blade battery
Cell brand Verdi Verdi Verdi
Battery pack warranty Eight years or 160,000 kilometers Eight years or 160,000 kilometers Eight years or 160,000 kilometers
Battery capacity (kWh) 51.8 62.2 62.2
Battery energy density (Wh/kg) - - -
Battery charging ratio - - -
Battery charging Fast charge 0.43 hours Fast charge 0.43 hours Fast charge 0.43 hours
● Fast charge interface ● Fast charge interface ● Fast charge interface
Max Fast charge power (kw) 77 92 92
Position of the fast charge interface Left fuel tank position Left fuel tank position Left fuel tank position
Position of the slow charge port Left fuel tank position Left fuel tank position Left fuel tank position
Battery temperature management system ● Low temperature heating ● Low temperature heating ● Low temperature heating
● Liquid cooling ● Liquid cooling ● Liquid cooling
Single pedal mode - - -
VTOL mobile power station function - - -
VTOL Maximum external discharge power - - -
VTOV Maximum external discharge power - - -
gearbox
Transmission description Single-speed transmission for electric vehicles Single-speed transmission for electric vehicles Single-speed transmission for electric vehicles
Shift number one one one
Transmission type Fixed tooth ratio gearbox Fixed tooth ratio gearbox Fixed tooth ratio gearbox
Chassis/steering
Driving mode front-drive front-drive front-drive
Front suspension form McPherson type independent suspension McPherson type independent suspension McPherson type independent suspension
Rear suspension form Longitudinal torsion beam type non-independent suspension Longitudinal torsion beam type non-independent suspension Longitudinal torsion beam type non-independent suspension
Steering type Electric power assist Electric power assist Electric power assist
Car body structure self-supporting self-supporting self-supporting
Wheel/Brake
Front brake type Ventilated disk type Ventilated disk type Ventilated disk type
Rear brake type Solid disk type Solid disk type Solid disk type
Parking brake type Electronic parking Electronic parking Electronic parking
Front tire specifications 215/50 R18 215/50 R18 215/50 R18
Rear tire specifications 215/50 R18 215/50 R18 215/50 R18
Spare gauge - - -
Active safety
ABS anti-lock ● Standard Configuration ● Standard Configuration ● Standard Configuration
Braking force distribution (EBD/CBC, etc.) ● Standard Configuration ● Standard Configuration ● Standard Configuration
Brake assist (EBA/BA, etc.) ● Standard Configuration ● Standard Configuration ● Standard Configuration
Traction control (TCS/ASR, etc.) ● Standard Configuration ● Standard Configuration ● Standard Configuration
Body stability system (ESP/DSC, etc.) ● Standard Configuration ● Standard Configuration ● Standard Configuration
Active safety early warning system ● Lane departure warning ● Lane departure warning ● Lane departure warning
● Front collision warning ● Front collision warning ● Front collision warning
● Rear collision warning ● Rear collision warning ● Rear collision warning
● Reverse side warning ● Reverse side warning ● Reverse side warning
●DOW open door warning ●DOW open door warning ●DOW open door warning
Active brake ● Standard Configuration ● Standard Configuration ● Standard Configuration
Parallel auxiliary ● Standard Configuration ● Standard Configuration ● Standard Configuration
Lane keeping assist system ● Standard Configuration ● Standard Configuration ● Standard Configuration
Keep lane centered ● Standard Configuration ● Standard Configuration ● Standard Configuration
Fatigue driving tips ● Standard Configuration ● Standard Configuration ● Standard Configuration
Active DMS fatigue detection ● Standard Configuration ● Standard Configuration ● Standard Configuration
In-car vital signs detection - - -
Road traffic sign recognition - - ● Standard Configuration
Signal light recognition - - ● Standard Configuration
Night vision system - - -
Passive safety
Front airbag ● Main driver seat ● Main driver seat ● Main driver seat
● Passenger seat ● Passenger seat ● Passenger seat
Side airbag ● Front Row ● Front Row ● Front Row
Side safety air curtain ● Standard Configuration ● Standard Configuration ● Standard Configuration
Front knee air bag - - -
Central airbag - - -
Seat belt is not fastened ● Standard Configuration ● Standard Configuration ● Standard Configuration
Tire pressure monitoring system ● Tire pressure display ● Tire pressure display ● Tire pressure display
Child Seat Interface (ISOFIX) ● Standard Configuration ● Standard Configuration ● Standard Configuration
Passive pedestrian protection - - -
Safety tyre - - -
Auxiliary/control configuration
Parking radar ● Front ● Front ● Front
● Back ● Back ● Back
Warning of front car leaving - - -
Narrow auxiliary ● Standard Configuration ● Standard Configuration ● Standard Configuration
Driver assistance image ● Astern image ● Astern image ● Astern image
● Blind area image on the side of the car ● Blind area image on the side of the car ● Blind area image on the side of the car
●360° panoramic image ●360° panoramic image ●360° panoramic image
Cruise control system ● Cruise control ● Cruise control ● Cruise control
● Adaptive cruise ● Adaptive cruise ● Adaptive cruise
● Full speed adaptive cruise ● Full speed adaptive cruise ● Full speed adaptive cruise
Automatic lane change assistance - - ● Standard Configuration
Automatic ramp exit - - ● Standard Configuration
Navigation assistance driving - - ● High speed section
- - ● Urban Road section
Driver assistance class ●L2 level ●L2 level ●L2 level
Automatic parking ● Standard Configuration ● Standard Configuration ● Standard Configuration
Tracking astern - - ● Standard Configuration
Memory parking - - ● Standard Configuration
AUTOHOLD ● Standard Configuration ● Standard Configuration ● Standard Configuration
Uphill Assistance (HAC) ● Standard Configuration ● Standard Configuration ● Standard Configuration
Steep Descent (HDC) - - -
Variable suspension regulation - - -
Air suspension - - -
Electromagnetic induction suspension - - -
Variable steering ratio system - - -
Front axle limited slip mode - - -
Rear axle limited slip mode - - -
Central differential locking function - - -
Integrated active steering system - - -
Driving mode selection ● Sports ● Sports ● Sports
●ECO/ Economy ●ECO/ Economy ●ECO/ Economy
● Standard comfort ● Standard comfort ● Standard comfort
Braking energy recovery system ● Standard Configuration ● Standard Configuration ● Standard Configuration
Low speed driving warning tone ● Standard Configuration ● Standard Configuration ● Standard Configuration
External configuration
Skylight type ● Do not open the panoramic skylight ● Do not open the panoramic skylight ● Do not open the panoramic skylight
Light sense canopy - - -
Roof rack - - -
Sports appearance kit - - -
Electric spoiler - - -
Active closed intake grille ● Standard Configuration ● Standard Configuration ● Standard Configuration
Aluminium alloy wheel hub ● Standard Configuration ● Standard Configuration ● Standard Configuration
Frameless design door - - -
Hidden door handle ● Standard Configuration ● Standard Configuration ● Standard Configuration
Welcome function ● Chair welcome ● Chair welcome ● Chair welcome
Towing hook - - -
Internal configuration
Steering wheel material ● Cortex ● Cortex ● Cortex
Steering wheel adjustment ● Up and down + front and back ● Up and down + front and back ● Up and down + front and back
Electric steering wheel control - - -
Steering wheel function ● Multi-function control ● Multi-function control ● Multi-function control
Shift pattern ● Electronic shield ● Electronic shield ● Electronic shield
Driving computer screen ● Color ● Color ● Color
LCD instrument style ● Full liquid crystal ● Full liquid crystal ● Full liquid crystal
LCD meter size (inches) - - -
Comfort/security configuration
Electric suction door - - -
Electric rear door ● Standard Configuration ● Standard Configuration ● Standard Configuration
Inductive rear door - - -
Electric rear door position memory ● Standard Configuration ● Standard Configuration ● Standard Configuration
Car central control lock ● Standard Configuration ● Standard Configuration ● Standard Configuration
Remote key type ● Intelligent remote control key ● Intelligent remote control key ● Intelligent remote control key
●NFC/RFID keys ●NFC/RFID keys ●NFC/RFID keys
● Bluetooth key for mobile phone ● Bluetooth key for mobile phone ● Bluetooth key for mobile phone
Keyless entry ● Front Row ● Front Row ● Front Row
Keyless start ● Standard Configuration ● Standard Configuration ● Standard Configuration
Remote boot ● Standard Configuration ● Standard Configuration ● Standard Configuration
Remote control mobile vehicle - - ● Standard Configuration
Vehicle call function - - ● Standard Configuration
Head-up display system (HUD) - - -
Built-in tachograph ● Standard Configuration ● Standard Configuration ● Standard Configuration
Active noise reduction - - -
Mobile phone wireless charging ● Standard Configuration ● Standard Configuration ● Standard Configuration
110V/220V/230V power socket - - -
Luggage compartment 12V power interface - - -

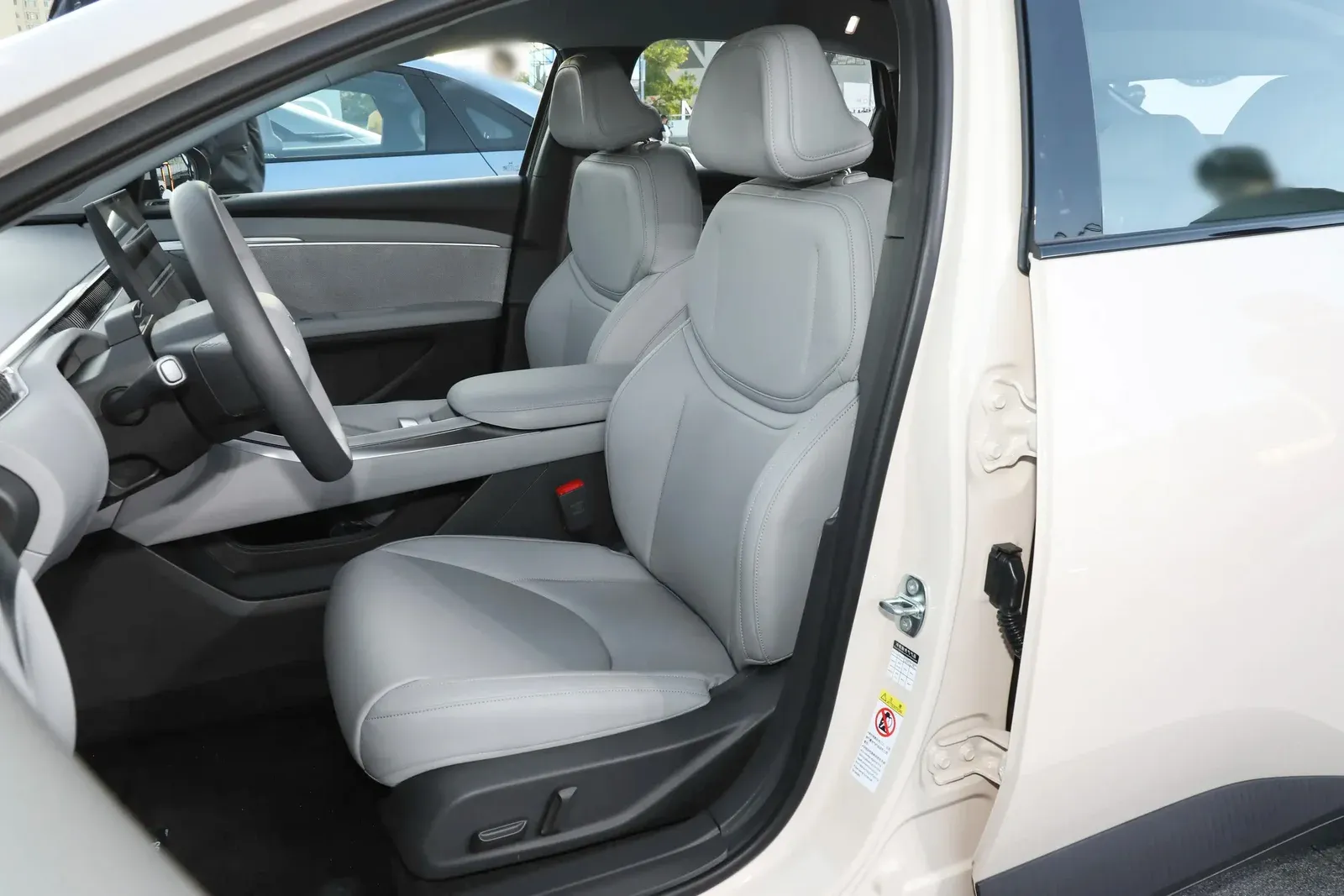

Seat configuration
Seat material ● Imitation leather ● Imitation leather ● Imitation leather
Sports style seat - - -
Second row of separate seats - - -
Electric seat adjustment ● Main driver seat ● Main driver seat ● Main driver seat
● Passenger seat ● Passenger seat ● Passenger seat
Overall adjustment of the main driver seat ● Forward and backward movement ● Forward and backward movement ● Forward and backward movement
● Backrest Angle ● Backrest Angle ● Backrest Angle
● High and low adjustment ● High and low adjustment ● High and low adjustment
Local adjustment of the main driver seat ● Headrest ● Headrest ● Headrest
Passenger seat overall adjustment ● Forward and backward movement ● Forward and backward movement ● Forward and backward movement
● Backrest Angle ● Backrest Angle ● Backrest Angle
Passenger seat local adjustment ● Headrest ● Headrest ● Headrest
Second row seat overall adjustment - - -
The second row of seats is partially adjusted - - -
Front seat function - ● Heating ● Heating
- ● Ventilation ● Ventilation
● Memory (main driver) ● Memory (main driver) ● Memory (main driver)
Second row seat feature - - -
Boss key - - -
Front/rear armrests ● Front Row ● Front Row ● Front Row
Rear cup holder - - -
Heating/cooling cup holder - - -
Rear seat reclining ratio ●40:60 ●40:60 ●40:60
Second row of tray tables - - -
Intelligent interconnection
Center control screen size (inches) ●15.6 ●15.6 ●15.6
Central control screen material - - -
Touch screen vibration feedback - - -
GPS navigation system ● Standard Configuration ● Standard Configuration ● Standard Configuration
AR reality navigation - - -
Navigation information display ● Standard Configuration ● Standard Configuration ● Standard Configuration
Road rescue service ● Standard Configuration ● Standard Configuration ● Standard Configuration
Bluetooth/car phone ● Standard Configuration ● Standard Configuration ● Standard Configuration
Mobile Internet mapping - - -
Vehicle networking ● Standard Configuration ● Standard Configuration ● Standard Configuration
4G/5G network ●4G ●4G ●4G
OTA upgrade ● Standard Configuration ● Standard Configuration ● Standard Configuration
Facial recognition ● Standard Configuration ● Standard Configuration ● Standard Configuration
Fingerprint recognition - - -
Voiceprint recognition - - -
Emotion recognition - - -
Speech recognition control system ● Standard Configuration ● Standard Configuration ● Standard Configuration
Voice wake-up free function ● Standard Configuration ● Standard Configuration ● Standard Configuration
Voice region wake-up recognition function ● Main driver ● Main driver ● Main driver
● Co-pilot ● Co-pilot ● Co-pilot
● Second row ● Second row ● Second row
Continuous speech recognition ● Standard Configuration ● Standard Configuration ● Standard Configuration
Visible to say ● Standard Configuration ● Standard Configuration ● Standard Configuration
Voice assistant wake word Hello, little P Hello, little P Hello, little P
Gesture control function ● Standard Configuration ● Standard Configuration ● Standard Configuration
Wi-Fi hotspot ● Standard Configuration ● Standard Configuration ● Standard Configuration
Audio-visual entertainment
Multi-finger fly screen control ● Standard Configuration ● Standard Configuration ● Standard Configuration
App store ● Standard Configuration ● Standard Configuration ● Standard Configuration
Multimedia interface ●USB/Type-C ●USB/Type-C ●USB/Type-C
Number of USB/Type-C ports ● Three in the front row ● Three in the front row ● Three in the front row
● Two in the back ● Two in the back ● Two in the back
USB/Type-C Maximum charging power Front 45W Front 45W Front 45W
Rear 15W Rear 15W Rear 15W
Car TV - - -
Rear LCD screen - - -
Simulated sound wave - - -
Audio brand - - -
Number of speakers (PCS) ●7 ●7 ●7
○18 ○18 ○18
Sound layout - - -
Sky channel ○ Optional ○ Optional ○ Optional
Rear multimedia control - - -
Lighting arrangement
Low beam lamp ●LED ●LED ●LED
Full beam ●LED ●LED ●LED
Daytime running light ● Standard Configuration ● Standard Configuration ● Standard Configuration
Adaptive near and far light ● Standard Configuration ● Standard Configuration ● Standard Configuration
Automatic headlight ● Standard Configuration ● Standard Configuration ● Standard Configuration
Steering auxiliary light - - -
Front fog lamp - - -
Headlight Follow-up Steering (AFS) - - -
Headlight height adjustment ● Standard Configuration ● Standard Configuration ● Standard Configuration
Headlight cleaning function - - -
Interior ambient light - ●256 colors ●256 colors
Active ambient light - - -
Lighting feature - - -
Light projection technique - - -
Headlights turn off late ● Standard Configuration ● Standard Configuration ● Standard Configuration
Headlight rain fog mode - - -
Glass/rear view mirror
Power window ● Front Row ● Front Row ● Front Row
● Back Row ● Back Row ● Back Row
The window is raised and lowered by one click ● All Car ● All Car ● All Car
Window anti-clamping function ● Standard Configuration ● Standard Configuration ● Standard Configuration
Exterior rearview mirror function ● Electric regulation ● Electric regulation ● Electric regulation
● Heating ● Heating ● Heating
● Electric folding ● Electric folding ● Electric folding
● Memories ● Memories ● Memories
● Automatic reverse down ● Automatic reverse down ● Automatic reverse down
● Automatic folding of lock car ● Automatic folding of lock car ● Automatic folding of lock car
Internal rearview mirror function - - -
Car mirror ● Main driver seat + lighting ● Main driver seat + lighting ● Main driver seat + lighting
● Passenger seat + lighting ● Passenger seat + lighting ● Passenger seat + lighting
Rear privacy glass - - -
Car sun curtain - - -
Rain sensing wipers ● Standard Configuration ● Standard Configuration ● Standard Configuration
Rear wiper - - -
Multilayer soundproof glass - - -
Front windshield electric heating - - -
Heating water nozzle - - -
Air conditioning/Refrigerator
Air conditioning control mode ● Auto ● Auto ● Auto
Independent rear air conditioning - - -
Rear air outlet ● Standard Configuration ● Standard Configuration ● Standard Configuration
Concealed air conditioning outlet ● Standard Configuration ● Standard Configuration ● Standard Configuration
Temperature zone control ● Dual zone air conditioning ● Dual zone air conditioning ● Dual zone air conditioning
Car air purifier - - -
PM2.5 filter device in car ● Standard Configuration ● Standard Configuration ● Standard Configuration
HEPA filter device - - -
Anion generator - - -
In-car fragrance device - - -
AQS Air Quality Management System - - -
Car refrigerator - - -
Car refrigerator function - - -
Intelligent configuration
Operating system for assisted driving ●XPILOT ●XPILOT -
- - ●XNGP
Driver assistance chip - - ●NVIDIADRIVEOrin*2
Car smart chip ● Qualcomm Snapdragon 8155P ● Qualcomm Snapdragon 8155P ● Qualcomm Snapdragon 8155P
Engine System Memory (GB) ●16 ●16 ●16
Vehicle System Storage (GB) ●128 ●128 ●128
Mobile App remote control ● Digital key ● Digital key ● Digital key
● Vehicle monitoring ● Vehicle monitoring ● Vehicle monitoring
● Remote control ● Remote control ● Remote control
● Charge Management ● Charge Management ● Charge Management
● Service Reservation ● Service Reservation ● Service Reservation
Heat pump management system - - -
Number of external cameras (PCS) ●8 ●8 ●12
Outside camera head pixel - - -
Number of cameras in car (PCS) ●1 ●1 ●1
Interior camera head pixel - - -
Number of ultrasonic radars (PCS) ●12 ●12 ●12
Number of millimeter wave radars (PCS) ●3 ●3 ●3
Sub-meter high precision positioning system - - ● Standard Configuration
High precision map - - ● Standard Configuration
Sentinel (Clairvoyant) mode - - -
V2X communication - - -
Optional package
Custom optional Optional exterior, interior, hub, brakes Optional exterior, interior, hub, brakes Optional exterior, interior, hub, brakes
PSS Advanced custom speaker audio upgrade package PSS Advanced speaker Sound system (18 speakers):4 tweeters, 3 midrange speakers, 6 surround speakers, 4 subwoofers,1 subwoofer,1 independent power amplifier, 7.1.4 channel surround sound arrangement with sky channel PSS Advanced speaker Sound system (18 speakers):4 tweeters, 3 midrange speakers, 6 surround speakers, 4 subwoofers,1 subwoofer,1 independent power amplifier, 7.1.4 channel surround sound arrangement with sky channel PSS Advanced speaker Sound system (18 speakers):4 tweeters, 3 midrange speakers, 6 surround speakers, 4 subwoofers,1 subwoofer,1 independent power amplifier, 7.1.4 channel surround sound arrangement with sky channel
○ 4000 yuan is optional ○ 4000 yuan is optional ○ 4000 yuan is optional
Hub/tire upgrade kit 19-inch sports wheels with 235/40R19 Michelin tires 19-inch sports wheels with 235/40R19 Michelin tires 19-inch sports wheels with 235/40R19 Michelin tires
○ 4000 yuan is optional ○ 4000 yuan is optional ○ 4000 yuan is optional

Features

Dimensions & Capacity

  • Length
  • Height
  • Wheelbase
  • Height (including roof rails)
  • Luggage Capacity (Seats Up - Litres)
  • Luggage Capacity (Seats Down - Litres)
  • Width
  • Width (including mirrors)
  • Gross Vehicle Weight (kg)
  • Max. Loading Weight (kg)
  • Max. Roof Load (kg)
  • No. of Seats

Any questions? Contact us now






    This site is protected by reCAPTCHA and the Google Privacy Policy and Terms of Service apply.

    Get In Touch

    If you have any questions or need support, fill out the form below with your name, email, and message and we will respond as soon as possible.






      This site is protected by reCAPTCHA and the Google Privacy Policy and Terms of Service apply.

      Contact details

      We are always here to answer any questions or concerns you may have. Thanks for contacting us!

      Follow us

      ABOUT US

      Welcome to China Auto Direct, your premier source for the finest Chinese automobiles at unbeatable prices. We specialize in providing businesses worldwide with direct access to a diverse range of high-quality vehicles from China, ensuring that you receive exceptional value and reliable service with every transaction.

      Why Choose Us?

      Quality Assurance

      We offer a curated selection of vehicles, ensuring that you receive only the best autos from China.

      Competitive Pricing

      Our direct sourcing approach allows us to offer competitive prices, providing you with great value.

      Reliable Service

      Our experienced team is dedicated to ensuring a smooth and efficient export process, handling all the details so you can focus on your business.

      Global Reach

      With a robust network of partners and clients worldwide, we are well-equipped to meet your automotive needs, no matter where you are.

      Frequently Asked Questions

      Cras vitae ac nunc orci. Purus amet tortor non at phasellus ultricies hendrerit. Eget a, sit morbi nunc sit id massa. Metus, scelerisque volutpat nec sit vel donec. Sagittis, id volutpat erat vel.
      Lorem ipsum dolor sit amet, consectetur adipiscing elit, sed do eiusmod tempor incididunt ut labore et dolore magna aliqua. Ut enim ad minim veniam, quis nostrud exercitation ullamco laboris nisi ut aliquip ex ea commodo consequat.
      Cras vitae ac nunc orci. Purus amet tortor non at phasellus ultricies hendrerit. Eget a, sit morbi nunc sit id massa. Metus, scelerisque volutpat nec sit vel donec. Sagittis, id volutpat erat vel.
      At vero eos et accusamus et iusto odio dignissimos ducimus qui blanditiis praesentium voluptatum deleniti atque corrupti quos dolores et quas molestias excepturi sint occaecati cupiditate non provident.
      Cras vitae ac nunc orci. Purus amet tortor non at phasellus ultricies hendrerit. Eget a, sit morbi nunc sit id massa. Metus, scelerisque volutpat nec sit vel donec. Sagittis, id volutpat erat vel.
